ME1200-UMA RF deck specifications

• Frequency Coverage: 430-440MHz amateur bands,
extensions and/or changes   on request.
• Power Output: 1000 W PEP or 700 W continuous carrier.
• Intermodulation Distortion: Better than 35 dB below rated output.
• Hum and noise: Better than 40 dB below rated output.
• Harmonic Output Suppression: Better than 50 dB below rated output.
• Input and Output Impedances:

   - nominal value: 50 Ohm unbalanced, UHF ("N"output,BNC input type connectors)
   - input circuit: tuned, VSWR <1.5:1
   - Output (antenna) impedance matching capability: VSWR up to 2:1

• RF Gain: 12dB typically, frequency response < 1dB (50-60W drive power for
   rated output).

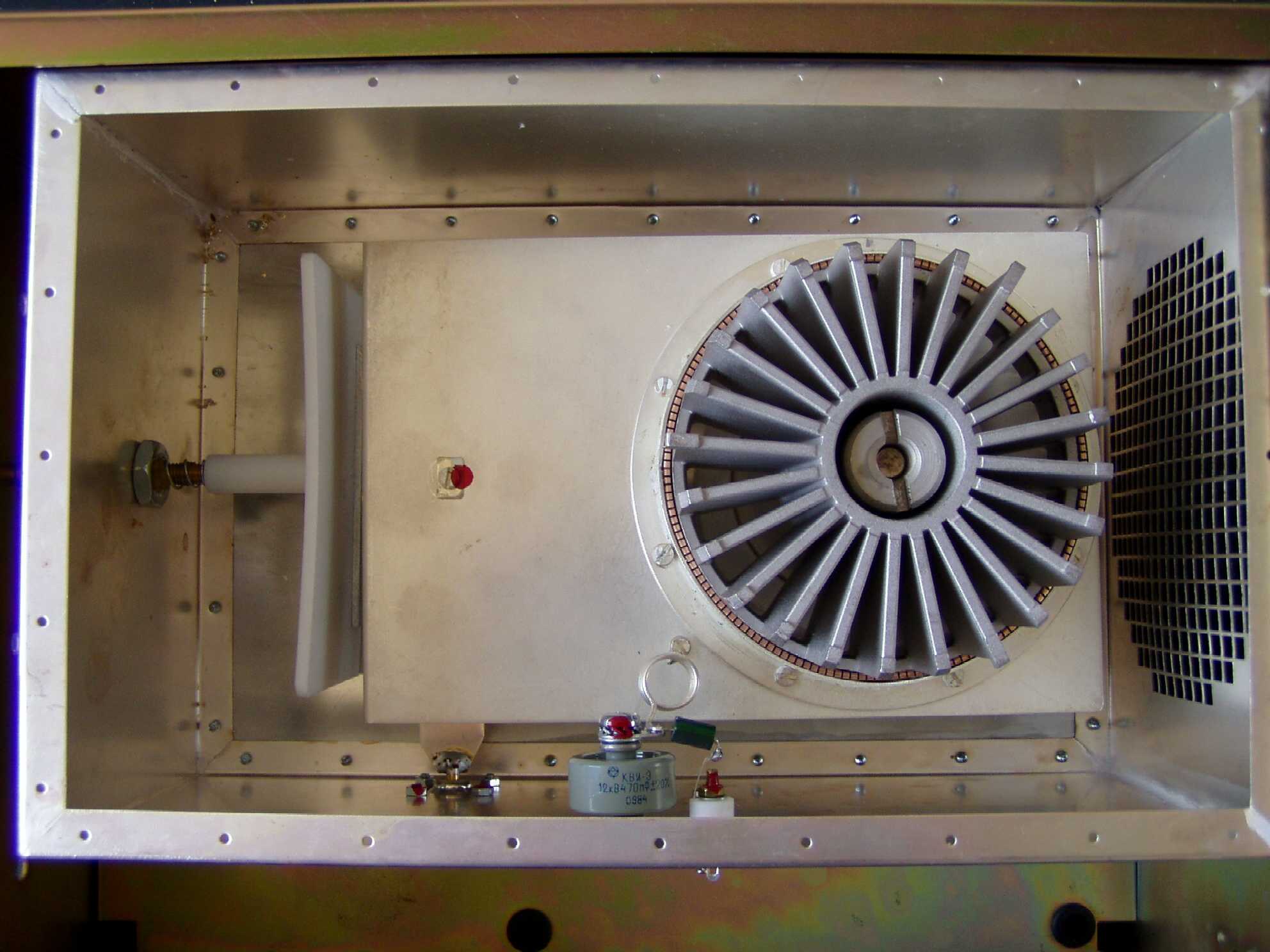

• Power tube:GS31B
• Complies with CE safety and electromagnetic compatibility requirements.
• FAN :built in 230V/13W AC fan PAPST type 4656
• Size & Weight : WxDxH: 170X270X125mm, 4.5kg
• Operating environments:
   - temperature range: 0...+50 degs.Celsius;
   - humidity: up to 95% @ +35 degs.Celsius.
   - height: up to 3000m above sea level without output deterioration
